Law Enforcement · K9 Transport · Case Study
A Mercedes Sprinter 2500 high-roof built around the working dog. Multi-kennel array, redundant power, climate control, and operator-grade hardware end-to-end.
MercedesThe Brief
The brief was straightforward in description and demanding in execution: a single Mercedes Sprinter capable of safely moving multiple working dogs across a long operational day, with the systems on board to keep both the animals and the handlers in working condition for the duration. That meant climate management that doesn't quit at idle, a power system sized for full-day standalone operation, hardware that survives daily field use, and a layout the handler can move through quickly without compromise.
The challenge was integration. Each subsystem — kennels, power, climate, water, handler comfort — had to coexist inside a 2500 high-roof footprint while remaining serviceable by any qualified tech down the road. No proprietary black boxes. No vendor lock-in. Industry-standard components throughout. Delivered as a field-ready unit, the build starts from $160,000.
Kennel Array
The kennel array is the heart of the build. Each unit is constructed from welded aluminum frame with ventilated grille doors and a stainless locking mechanism. Doors swing wide and latch hard. Hinges are pinned and pulled from the same hardware family used in commercial K9 transport fleets.
Every kennel is independently accessible. Top-row units open to a separate volume — useful for staging gear, separating animals, or running mixed loads where some compartments stay closed. Interior surfaces are wipe-clean. Drainage and ventilation are engineered, not afterthoughts.
Power & Systems

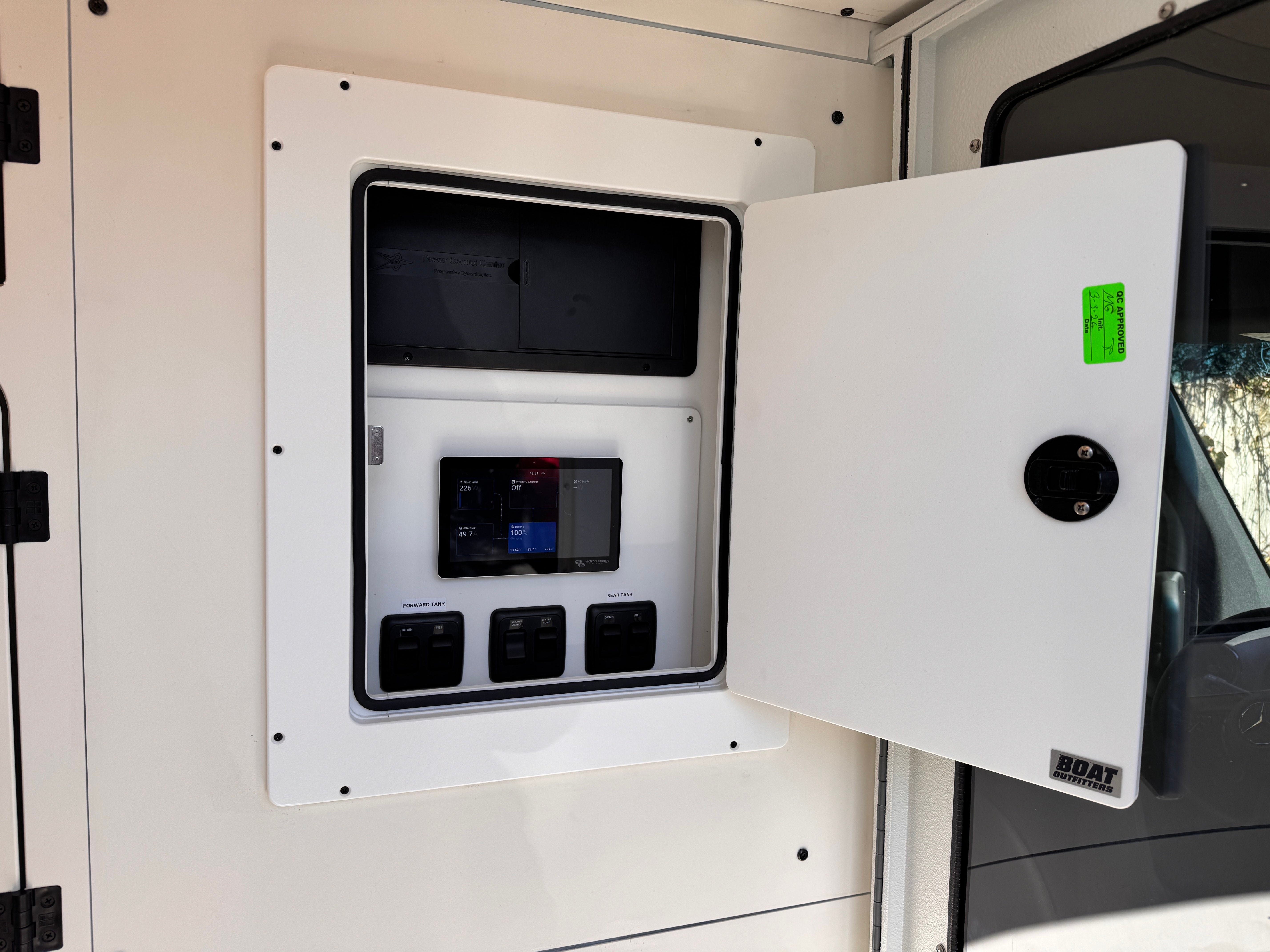

The power system is anchored by a Victron control center with live touchscreen monitoring — battery state, charge source, current draw, alternator output, shore input, all visible on a single panel. The control center sits at the handler-facing wall so any anomaly is caught immediately, not three hours into a shift.
Switching is purpose-built: ceiling light, water pump, forward and rear tank controls, and climate functions are broken out to labeled rocker switches at the panel. Nothing is buried in a phone app. Nothing is locked behind a vendor cloud. Every function is operable from the front of the vehicle and serviceable by any qualified marine or RV tech.
Climate & Lighting
Overhead HVAC vents distribute conditioned air evenly across the kennel array — no cold spot at one end, no stagnant pocket at the other. The system runs off the house bank, so the cabin holds temperature whether the vehicle is moving or parked.
Lighting is a warm-toned LED perimeter at the ceiling-wall seam, with additional task lighting at the handler position. The result is a working interior that's bright enough to load and inspect dogs at 4 a.m. and atmospheric enough to settle them once underway. A central skylight pulls daylight into the aisle.
Handler Area

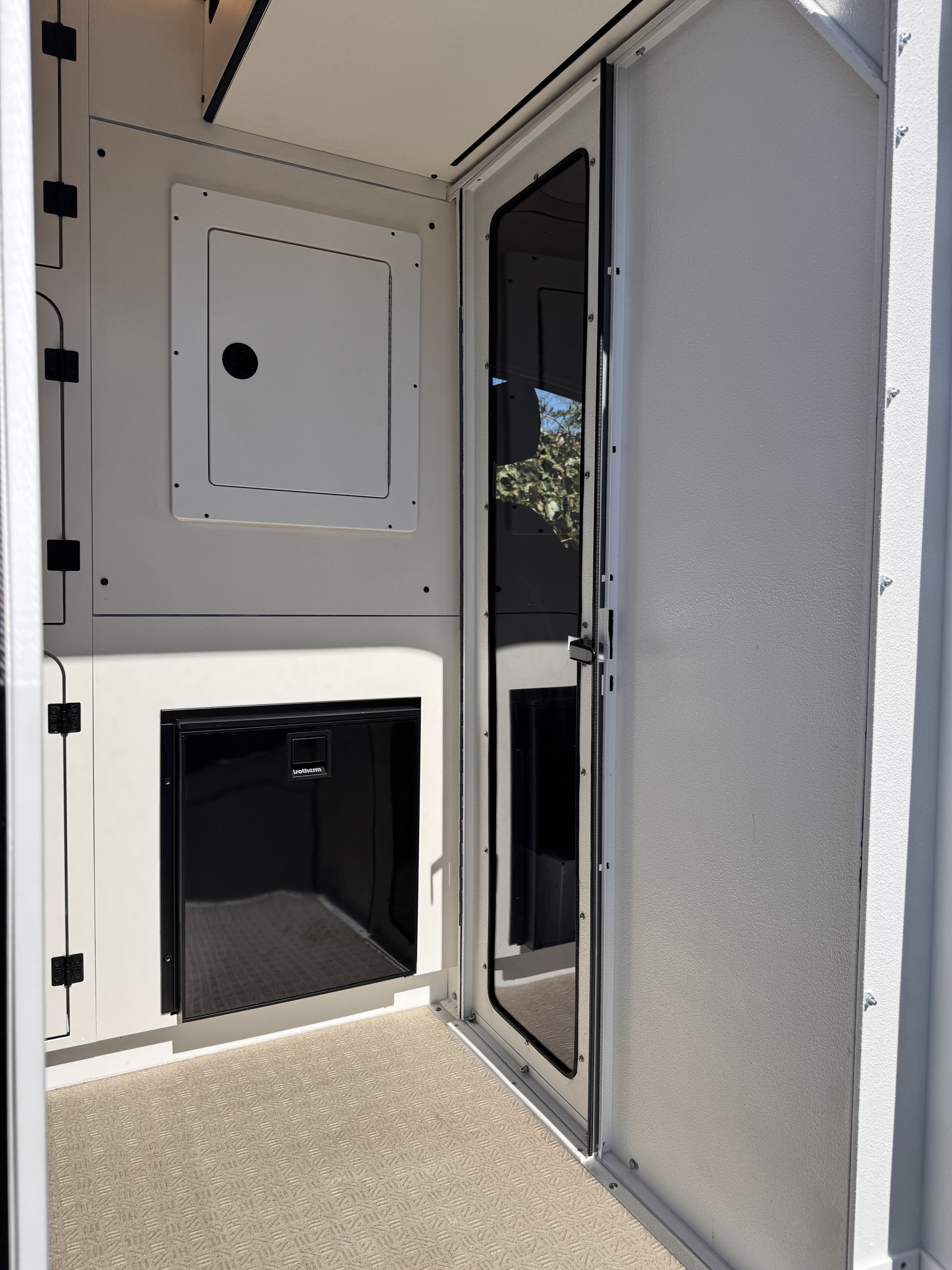

Forward of the kennel wall, the handler area carries the systems the crew needs across a long shift — a marine-grade Isotherm refrigerator for food, medication, or biological samples, secure storage, and a cab partition window that maintains visual contact with the animals without compromising cabin separation.
From the driver's seat, the partition window opens onto a lit, climate-controlled kennel array. The handler can see condition at a glance — no walk to the rear required.
Water & Safety Hardware
An Aquor V1+ exterior water hookup gives the crew freeze-rated, hard-mounted access to potable water at the side of the vehicle — fast fills, clean disconnect, no exposed plumbing. The interior aisle is finished in non-slip rubberized flooring graded for daily wash-down. Stainless ceiling anchor points run the length of the cabin for tie-down work or temporary equipment mounting.
Every surface is selected with the realities of moving working dogs in mind: wipe-clean, slip-resistant, and built for hose access.
Build Details
The components and hardware that make up the build.
In the Field

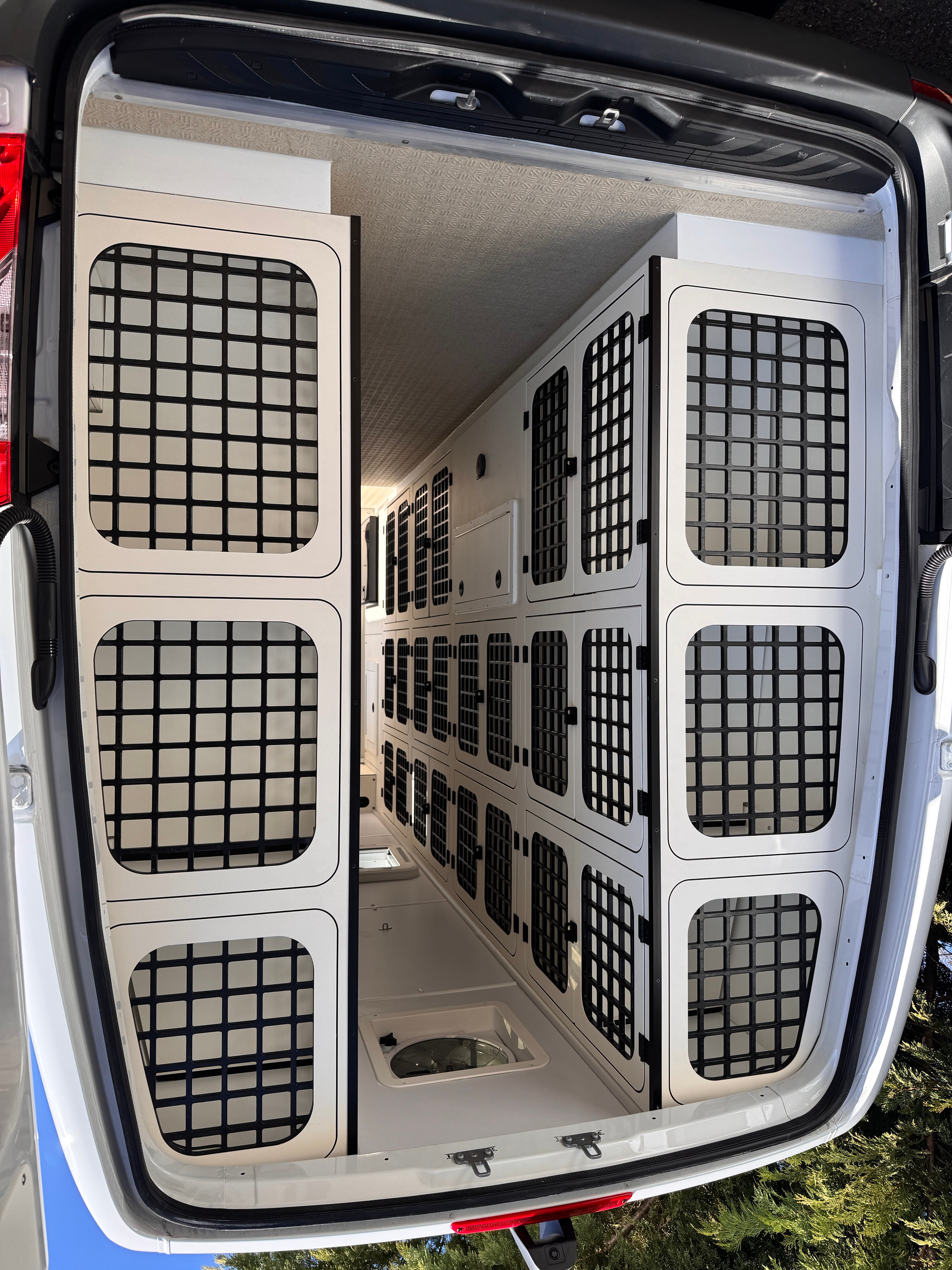

Open the rear doors and the build reads as one system: the full kennel array, the handler-facing controls, the climate and power that keep it all running whether the engine is on or off. It's a vehicle engineered to move a working team through a long operational day — and to be serviced, loaded, and washed down at the end of it without a second thought.
